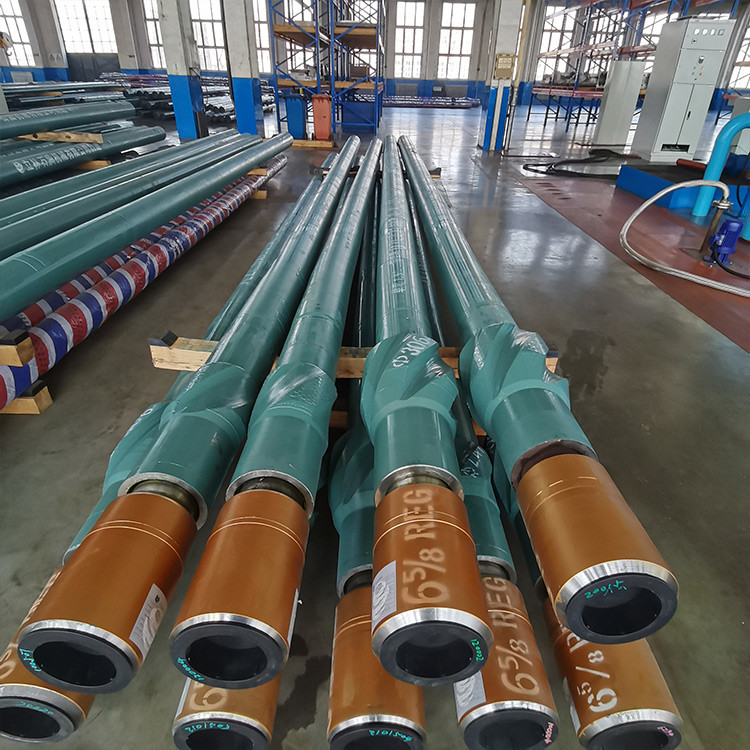

موتور گلی چاه عمودی PDM بدون مهندسی حفاری
برای نمونه و کوپن رایگان با من تماس بگیرید.
واتساپ:0086 18588475571
وی چت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.
xجزئیات محصول
| نام | PDM / حفاری چاه عمودی | مواد | فولاد |
|---|---|---|---|
| ویژگی | خم قابل تنظیم | برای | حفاری جهت دار افقی بدون ترانشه / مهندسی بدون حفاری / HDD |
| برجسته | موتور حفاری PDM چاه عمودی,موتور حفاری PDM بدون مهندسی حفاری,موتور گل و لای PDM عمودی فولادی |
||
توضیحات محصول
PDM / حفاری چاه عمودی / حفاری چاه جهت دار / حفاری چاه افقی
OD: 43-340mm
| سایز مدل | لوب ها | مراحل | لوله OD | نرخ جریان دامنه |
سرعت دامنه |
چرخش | NBR-Stator | HARD NBR-Stator | اندازه سوراخ دامنه |
نخ اتصالات |
||||||||||
| عمل گشتاور |
عمل اختلاف فشار |
حداکثر گشتاور |
حداکثر اختلاف فشار |
حداکثر قدرت |
عمل گشتاور |
عمل اختلاف فشار |
حداکثر گشتاور |
حداکثر اختلاف فشار |
حداکثر قدرت |
|||||||||||
| اینچ | میلی متر | در (میلی متر) | gpm (lpm) | دور در دقیقه | دور/گال (دور/لیتر) | ft-lb (Nm) | psi (kPa) | ft-lb (Nm) | psi (kPa) | HP(kW) | ft-lb (Nm) | psi (kPa) | ft-lb (Nm) | psi (kPa) | HP(kW) | که در | باکس آپ | جعبه پایین | ||
| 1-11/16 | 43 | 3:4 | 3.4 | 1.693 (43) | 3-8 (12-30) | 94-234 | 29.59 (7.816) | 41 (55) | 509(3512) | 61 (83) | 764(5268) | 1 (1) | 49 (66) | 764(5268) | 73 (99) | 1146(7902) | 3 (2) | 1-7/8 - 3 | M27×2 | M27×2 |
| 1-11/16 | 43 | 4:5 | 3.4 | 1.693 (43) | 3-8 (12-30) | 77-193 | 24.39 (6.442) | 49 (67) | 509(3512) | 74 (101) | 764(5268) | 1 (1) | 59 (80) | 764(5268) | 89 (120) | 1146(7902) | 3 (2) | 1-7/8 - 3 | M27×2 | M27×2 |
| 1-11/16 | 43 | 4:5 | 4.0 | 1.693 (43) | 3-8 (12-30) | 93-232 | 29.26 (7.73) | 49 (66) | 599(4132) | 73 (99) | 899(6198) | 3 (2) | 58 (79) | 899(6198) | 88 (119) | 1348(9297) | 3 (2) | 1-7/8 - 3 | M27×2 | M27×2 |
| 1-11/16 | 43 | 4:5 | 4.1 | 1.693 (43) | 14-26 (52-100) | 251-483 | 18.29 (4.831) | 80 (108) | 614(4235) | 119 (162) | 921(6353) | 7 (5) | 96 (130) | 921(6353) | 144 (195) | 1382(9530) | 9 (7) | 1-7/8 - 3 | M27×2 | M27×2 |
| 1-11/16 | 43 | 4:5 | 5.5 | 1.693 (43) | 14-26 (52-100) | 335-644 | 24.39 (6.442) | 80 (109) | 824(5682) | 121 (164) | 1236(8523) | 9 (7) | 97 (131) | 1236(8523) | 145 (197) | 1854(12785) | 12 (9) | 1-7/8 - 3 | M27×2 | M27×2 |
| 1-11/16 | 43 | 5:6 | 4.0 | 1.693 (43) | 21-40 (80-150) | 307-576 | 14.52 (3.837) | 98 (133) | 599(4132) | 148 (200) | 899(6198) | 11 (8) | 118 (160) | 899(6198) | 177 (240) | 1348(9297) | 13 (10) | 1-7/8 - 3 | M27×2 | M27×2 |
| 1-11/16 | 43 | 5:6 | 5.6 | 1.693 (43) | 21-40 (80-150) | 291-545 | 13.75 (3.632) | 145 (196) | 839(5785) | 217(294) | 1259(8678) | 15 (11) | 173(235) | 1259(8678) | 260(353) | 1888 (13017) | 17 (13) | 1-7/8 - 3 | M27×2 | M27×2 |
| 2-1/8 | 54 | 4:5 | 4.8 | 2.126 (54) | 29-66 (110-250) | 294-668 | 10.11 (2.672) | 169(229) | 719(4958) | 254(344) | 1079(7437) | 21 (16) | 203(275) | 1079(7437) | 305 (413) | 1618(11156) | 25 (19) | 2-3/8 - 3-1/2 | M33×2 | M33×2 |
| 2-1/8 | 54 | 4:5 | 4.8 | 2.126 (54) | 29-66 (110-250) | 305-693 | 10.49 (2.77) | 163(221) | 719(4958) | 245(332) | 1079(7437) | 21 (16) | 195(265) | 1079(7437) | 294(398) | 1618(11156) | 25 (19) | 2-3/8 - 3-1/2 | M33×2 | M33×2 |
| 2-1/8 | 54 | 5:6 | 3.5 | 2.126 (54) | 29-66 (110-250) | 226-513 | 7.77 (2.053) | 160(217) | 524(3616) | 240(326) | 787(5424) | 16 (12) | 192 (260) | 787(5424) | 288 (390) | 1180(8136) | 19 (14) | 2-3/8 - 3-1/2 | M33×2 | M33×2 |
| 2-1/8 | 54 | 5:6 | 3.5 | 2.126 (54) | 29-66 (110-250) | 234-532 | 8.06 (2.129) | 155 (210) | 524(3616) | 232(315) | 787(5424) | 16 (12) | 186(252) | 787(5424) | 279(378) | 1180(8136) | 19 (14) | 2-3/8 - 3-1/2 | M33×2 | M33×2 |
| 2-3/8 | 60 | 5:6 | 5.0 | 2.362 (60) | 29-66 (110-250) | 239-543 | 8.22 (2.171) | 217(294) | 749(5165) | 325 (441) | 1124(7748) | 23 (17) | 260(353) | 1124(7748) | 391(530) | 1686(11622) | 27 (20) | 2-7/8 - 3-9/16 | 1-1/2 TBG | 1-1/2 TBG |
| 2-1/2 | 65 | 4:5 | 3.6 | 2.559 (65) | 29-66 (110-250) | 205-466 | 7.06 (1.865) | 181 (246) | 539(3719) | 272 (369) | 809(5579) | 16 (12) | 218(295) | 809(5579) | 327(443) | 1214(8369) | 19 (14) | 2-7/8 - 3-9/16 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 4:5 | 3.2 | 2.874 (73) | 29-90 (110-340) | 136-419 | 4.66 (1.232) | 244 (331) | 480(3306) | 367(497) | 719(4959) | 20 (15) | 293(397) | 719(4959) | 440 (596) | 1079(7439) | 23 (17) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 4:5 | 3.5 | 2.874 (73) | 29-90 (110-340) | 129-398 | 4.43 (1.171) | 281(381) | 524(3616) | 422 (572) | 787(5424) | 21 (16) | 337(457) | 787(5424) | 506(686) | 1180(8136) | 25 (19) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 4:5 | 3.9 | 2.874 (73) | 29-90 (110-340) | 144-444 | 4.94 (1.306) | 281(381) | 584(4029) | 422 (572) | 877(6044) | 24 (18) | 337(457) | 877(6044) | 506(686) | 1315(9066) | 28 (21) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 4:5 | 4.1 | 2.874 (73) | 29-90 (110-340) | 147-453 | 5.05 (1.333) | 289(392) | 614(4235) | 434 (588) | 921(6353) | 25 (19) | 347 (470) | 921(6353) | 520 (705) | 1382(9530) | 30 (22) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 4:5 | 4.3 | 2.874 (73) | 29-90 (110-340) | 136-419 | 4.66 (1.232) | 328 (445) | 644 (4442) | 493(668) | 966(6663) | 27 (20) | 394(534) | 966(6663) | 591(801) | 1450 (9995) | 31 (23) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 5:6 | 2.9 | 2.874 (73) | 29-90 (110-340) | 78-242 | 2.7 (0.712) | 383 (519) | 435 (2996) | 575 (779) | 652(4494) | 17 (13) | 460(623) | 652(4494) | 690(935) | 978(6741) | 21 (16) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 5:6 | 4.1 | 2.874 (73) | 29-90 (110-340) | 126-388 | 4.32 (1.141) | 338(458) | 614(4235) | 507(687) | 921(6353) | 25 (19) | 406 (550) | 921(6353) | 609(825) | 1382(9530) | 30 (22) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 5:6 | 2.6 | 2.874 (73) | 61-119 (230-450) | 90-176 | 1.48 (0.391) | 625(847) | 390(2686) | 937(1271) | 584(4029) | 21 (16) | 749 (1016) | 584(4029) | 1124 (1524) | 877(6044) | 25 (19) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 5:6 | 2.6 | 2.874 (73) | 61-119 (230-450) | 78-153 | 1.29 (0.341) | 717(972) | 390(2686) | 1075(1458) | 584(4029) | 21 (16) | 860(1166) | 584(4029) | 1290 (1749) | 877(6044) | 25 (19) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 5:6 | 5.0 | 2.874 (73) | 90-169 (340-640) | 254-478 | 2.83 (0.747) | 629(853) | 749(5165) | 944 (1280) | 1124(7748) | 58 (43) | 755 (1024) | 1124(7748) | 1133(1536) | 1686(11622) | 68 (51) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 6:7 | 3.1 | 2.874 (73) | 61-119 (230-450) | 151-295 | 2.48 (0.656) | 444 (602) | 464(3202) | 666(903) | 697(4803) | 25 (19) | 533(722) | 697(4803) | 799(1083) | 1045(7205) | 30 (22) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 7:8 | 2.9 | 2.874 (73) | 61-119 (230-450) | 141-275 | 2.31 (0.611) | 446 (605) | 435 (2996) | 670(908) | 652(4494) | 23 (17) | 535(726) | 652(4494) | 803 (1089) | 978(6741) | 28 (21) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 7:8 | 3.1 | 2.874 (73) | 61-119 (230-450) | 176-344 | 2.9 (0.765) | 381 (516) | 464(3202) | 571(774) | 697(4803) | 25 (19) | 457(619) | 697(4803) | 685(929) | 1045(7205) | 30 (22) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 7:8 | 3.1 | 2.874 (73) | 61-119 (230-450) | 142-278 | 2.34 (0.618) | 471 (639) | 464(3202) | 707(959) | 697(4803) | 25 (19) | 566(767) | 697(4803) | 849(1151) | 1045(7205) | 30 (22) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 7:8 | 4.4 | 2.874 (73) | 61-119 (230-450) | 244-477 | 4.02 (1.061) | 389(528) | 659(4545) | 584 (792) | 989(6818) | 35 (26) | 468(634) | 989(6818) | 701(951) | 1483(10227) | 43 (32) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 2-7/8 | 73 | 7:8 | 4.4 | 2.874 (73) | 61-119 (230-450) | 252-494 | 4.15 (1.097) | 377(511) | 659(4545) | 566(767) | 989(6818) | 35 (26) | 452(613) | 989(6818) | 679(920) | 1483(10227) | 43 (32) | 3-1/8 - 4-3/8 | 1-1/2 TBG | 1-1/2 TBG |
| 3-1/8 | 80 | 5:6 | 3.0 | 3.15 (80) | 79-140 (300-530) | 191-337 | 2.4 (0.635) | 444 (602) | 449(3099) | 666(903) | 674(4649) | 28 (21) | 533(722) | 674(4649) | 799(1083) | 1012(6974) | 34 (25) | 3-3/4 - 4-3/4 | 2-3/8 REG | 2-3/8 REG |
| 3-1/8 | 80 | 7:8 | 6.3 | 3.15 (80) | 79-140 (300-530) | 151-266 | 1.9 (0.502) | 1180 (1600) | 944(6508) | 1770 (2400) | 1416(9762) | 60 (45) | 1416 (1920) | 1416(9762) | 2124(2880) | 2124(14643) | 71 (53) | 3-3/4 - 4-3/4 | 2-3/8 REG | 2-3/8 REG |
| 3-1/2 | 89 | 5:6 | 6.7 | 3.504 (89) | 29-111 (110-420) | 53-202 | 1.82 (0.482) | 1306 (1771) | 1004(6921) | 1960(2657) | 1506(10382) | 50 (37) | 1567(2125) | 1506(10382) | 2351(3188) | 2259(15573) | 60 (45) | 4-1/2 - 5-7/8 | 2-3/8 REG | 2-3/8 REG |
| 3-1/2 | 89 | 7:8 | 3.9 | 3.504 (89) | 95-143 (360-540) | 126-189 | 1.32 (0.35) | 1046(1418) | 584(4029) | 1569(2127) | 877(6044) | 38 (28) | 1255 (1702) | 877(6044) | 1883(2553) | 1315(9066) | 46 (34) | 4-1/2 - 5-7/8 | 2-3/8 REG | 2-3/8 REG |
| 3-1/2 | 89 | 7:8 | 4.2 | 3.504 (89) | 79-161 (300-610) | 79-160 | 1 (0.263) | 1502 (2037) | 629(4339) | 2254(3056) | 944(6509) | 46 (34) | 1803(2444) | 944(6509) | 2704(3666) | 1416(9764) | 55 (41) | 4-1/2 - 5-7/8 | 2-3/8 REG | 2-3/8 REG |
| 3-1/2 | 89 | 7:8 | 4.6 | 3.504 (89) | 53-74 (200-280) | 145-204 | 2.75 (0.727) | 595(806) | 689(4752) | 892 (1209) | 1034(7128) | 23 (17) | 713(967) | 1034(7128) | 1070(1451) | 1551(10692) | 28 (21) | 4-1/2 - 5-7/8 | 2-3/8 REG | 2-3/8 REG |
| 3-1/2 | 89 | 7:8 | 5.7 | 3.504 (89) | 53-74 (200-280) | 130-182 | 2.46 (0.649) | 826 (1120) | 854(5888) | 1239(1680) | 1281(8832) | 28 (21) | 991(1344) | 1281(8832) | 1487 (2016) | 1921(13248) | 35 (26) | 4-1/2 - 5-7/8 | 2-3/8 REG | 2-3/8 REG |
| 3-1/2 | 89 | 7:8 | 6.5 | 3.504 (89) | 53-74 (200-280) | 166-232 | 3.14 (0.83) | 736(998) | 974(6715) | 1104(1497) | 1461(10073) | 32 (24) | 884 (1198) | 1461(10073) | 1325 (1797) | 2192(15110) | 39 (29) | 4-1/2 - 5-7/8 | 2-3/8 REG | 2-3/8 REG |
| 3-3/4 | 95 | 2:3 | 10.1 | 3.74 (95) | 79-161 (300-610) | 745-1515 | 9.4 (2.483) | 383 (519) | 1513(10433) | 575 (779) | 2270(15650) | 110 (82) | 460(623) | 2270(15650) | 690(935) | 3405(23475) | 133 (99) | 4-5/8 - 5-7/8 | 2-7/8 REG | 2-7/8 REG |
| 3-3/4 | 95 | 4:5 | 5.7 | 3.74 (95) | 79-161 (300-610) | 188-383 | 2.38 (0.628) | 853 (1156) | 854(5888) | 1279 (1734) | 1281(8832) | 62 (46) | 1023(1387) | 1281(8832) | 1535(2081) | 1921(13248) | 75 (56) | 4-5/8 - 5-7/8 | 2-7/8 REG | 2-7/8 REG |
| 3-3/4 | 95 | 5:6 | 3.1 | 3.74 (95) | 79-161 (300-610) | 123-251 | 1.56 (0.411) | 709(961) | 464(3202) | 1064(1442) | 697(4803) | 34 (25) | 850(1153) | 697(4803) | 1276 (1730) | 1045(7205) | 40 (30) | 4-5/8 - 5-7/8 | 2-7/8 REG | 2-7/8 REG |
| 3-3/4 | 95 | 5:6 | 4.3 | 3.74 (95) | 79-161 (300-610) | 123-251 | 1.56 (0.411) | 983(1333) | 644 (4442) | 1475 (2000) | 966(6663) | 47 (35) | 1180 (1600) | 966(6663) | 1770 (2400) | 1450 (9995) | 56 (42) | 4-5/8 - 5-7/8 | 2-7/8 REG | 2-7/8 REG |
| 3-3/4 | 95 | 5:6 | 6.6 | 3.74 (95) | 79-161 (300-610) | 123-251 | 1.56 (0.411) | 1509(2046) | 989(6818) | 2264(3069) | 1483(10227) | 72 (54) | 1811(2455) | 1483(10227) | 2717(3683) | 2225(15341) | 87 (65) | 4-5/8 - 5-7/8 | 2-7/8 REG | 2-7/8 REG |
| 3-3/4 | 95 | 7:8 | 3.1 | 3.74 (95) | 79-161 (300-610) | 104-211 | 1.31 (0.346) | 841 (1140) | 464(3202) | 1261 (1710) | 697(4803) | 34 (25) | 1009(1368) | 697(4803) | 1514(2052) | 1045(7205) | 40 (30) | 4-5/8 - 5-7/8 | 2-7/8 REG | 2-7/8 REG |
| 3-3/4 | 95 | 7:8 | 4.3 | 3.74 (95) | 79-161 (300-610) | 104-211 | 1.31 (0.346) | 1166(1581) | 644 (4442) | 1750(2372) | 966(6663) | 47 (35) | 1399 (1897) | 966(6663) | 2099(2846) | 1450 (9995) | 56 (42) | 4-5/8 - 5-7/8 | 2-7/8 REG | 2-7/8 REG |
| 3-3/4 | 95 | 7:8 | 4.3 | 3.74 (95) | 79-161 (300-610) | 107-218 | 1.36 (0.358) | 1128 (1529) | 644 (4442) | 1692(2294) | 966(6663) | 47 (35) | 1353 (1835) | 966(6663) | 2031(2753) | 1450 (9995) | 56 (42) | 4-5/8 - 5-7/8 | 2-7/8 REG | 2-7/8 REG |
| 4-1/32 | 102 | 5:6 | 3.2 | 4.016 (102) | 79-161 (300-610) | 146-296 | 1.84 (0.486) | 618(838) | 480(3306) | 927(1257) | 719(4959) | 35 (26) | 742 (1006) | 719(4959) | 1113 (1509) | 1079(7439) | 42 (31) | 4-3/4 - 5-7/8 | 2-7/8 REG | 2-7/8 REG |
| 4-1/8 | 106 | 7:8 | 5.9 | 4.173 (106) | 79-190 (300-720) | 96-230 | 1.21 (0.32) | 1730(2345) | 884(6095) | 2595(3518) | 1326(9143) | 75 (56) | 2076(2814) | 1326(9143) | 3113(4221) | 1989(13715) | 91 (68) | 4-3/4 - 5-7/8 | 2-7/8 REG | 2-7/8 REG |
| 4-3/4 | 120 | 4:5 | 4.7 | 4.724 (120) | 100-251 (380-950) | 96-239 | 0.95 (0.252) | 1752(2375) | 704(4855) | 2628(3563) | 1056(7283) | 79 (59) | 2102(2850) | 1056(7283) | 3153(4275) | 1585(10925) | 95(71) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 4-3/4 | 120 | 4:5 | 5.5 | 4.724 (120) | 100-251 (380-950) | 149-373 | 1.49 (0.393) | 1314 (1782) | 824(5682) | 1972(2673) | 1236(8523) | 94 (70) | 1577(2138) | 1236(8523) | 2365(3207) | 1854(12785) | 113(84) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 4-3/4 | 120 | 5:6 | 4.2 | 4.724 (120) | 100-251 (380-950) | 81-202 | 0.81 (0.213) | 1851(2510) | 629(4339) | 2777(3765) | 944(6509) | 71 (53) | 2222(3012) | 944(6509) | 3332(4518) | 1416(9764) | 86 (64) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 4-3/4 | 120 | 5:6 | 4.2 | 4.724 (120) | 100-251 (380-950) | 72-181 | 0.72 (0.19) | 2600(3525) | 944(6508) | 3900(5288) | 1416(9762) | 90 (67) | 3900(5288) | 1416(9762) | 5851(7932) | 2124(14643) | 134 (100) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 4-3/4 | 120 | 5:6 | 5.2 | 4.724 (120) | 100-251 (380-950) | 81-202 | 0.81 (0.213) | 2292(3107) | 779(5372) | 3438(4661) | 1169(8058) | 89 (66) | 2750(3728) | 1169(8058) | 4125(5592) | 1753(12087) | 106 (79) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 4-3/4 | 120 | 5:6 | 5.5 | 4.724 (120) | 100-251 (380-950) | 94-236 | 0.94 (0.248) | 2081(2821) | 824(5682) | 3122(4232) | 1236(8523) | 94 (70) | 2497(3385) | 1236(8523) | 3746(5078) | 1854(12785) | 113(84) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 4-3/4 | 120 | 7:8 | 3.8 | 4.724 (120) | 151-349 (570-1320) | 77-178 | 0.51 (0.135) | 2641(3581) | 569(3925) | 3962(5372) | 854(5888) | 90 (67) | 3169(4297) | 854(5888) | 4755(6446) | 1281(8832) | 107 (80) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 4-3/4 | 120 | 7:8 | 3.8 | 4.724 (120) | 151-349 (570-1320) | 77-178 | 0.51 (0.135) | 3301(4476) | 854(5888) | 4952(6714) | 1281(8832) | 111 (83) | 3962(5371) | 1281(8832) | 5943(8057) | 1921(13248) | 134 (100) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 4-3/4 | 120 | 7:8 | 4.0 | 4.724 (120) | 151-349 (570-1320) | 97-226 | 0.65 (0.171) | 2196(2977) | 599(4132) | 3294(4466) | 899(6198) | 94 (70) | 2635(3572) | 899(6198) | 3952(5358) | 1348(9297) | 114 (85) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 4-3/4 | 120 | 7:8 | 4.3 | 4.724 (120) | 151-349 (570-1320) | 63-145 | 0.42 (0.11) | 3688 (5000) | 644 (4442) | 5532 (7500) | 966(6663) | 102 (76) | 4426 (6000) | 966(6663) | 6638 (9000) | 1450 (9995) | 122 (91) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 4-3/4 | 120 | 7:8 | 6.3 | 4.724 (120) | 151-349 (570-1320) | 91-210 | 0.6 (0.159) | 3726(5051) | 944(6508) | 5589(7577) | 1416(9762) | 149 (111) | 4471(6061) | 1416(9762) | 6706(9092) | 2124(14643) | 178(133) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 5 | 127 | 2:3 | 6.9 | 5 (127) | 100-251 (380-950) | 162-406 | 1.62 (0.427) | 1519(2059) | 1034(7128) | 2278(3089) | 1551(10692) | 118 (88) | 1823(2471) | 1551(10692) | 2734(3707) | 2326(16038) | 141 (105) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 5 | 127 | 2:3 | 11.4 | 5 (127) | 100-251 (380-950) | 382-955 | 3.8 (1.005) | 1066(1445) | 1708(11776) | 1599(2168) | 2562(17664) | 194(145) | 1279 (1734) | 2562(17664) | 1918(2601) | 3843(26496) | 232 (173) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 5 | 127 | 2:3 | 11.4 | 5 (127) | 100-251 (380-950) | 325-813 | 3.24 (0.856) | 1251 (1696) | 1708(11776) | 1876(2544) | 2562(17664) | 193(144) | 1501 (2035) | 2562(17664) | 2252(3053) | 3843(26496) | 232 (173) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 5 | 127 | 3:4 | 3.8 | 5 (127) | 100-251 (380-950) | 111-276 | 1.1 (0.291) | 1228 (1665) | 569(3925) | 1843(2498) | 854(5888) | 64 (48) | 1474 (1998) | 854(5888) | 2211(2997) | 1281(8832) | 78 (58) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 5 | 127 | 7:8 | 2.7 | 5 (127) | 151-349 (570-1320) | 64-149 | 0.43 (0.113) | 2236(3031) | 405(2789) | 3354(4547) | 607(4184) | 63 (47) | 2683(3637) | 607(4184) | 4024(5456) | 910(6276) | 76 (57) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 5 | 127 | 7:8 | 2.8 | 5 (127) | 151-349 (570-1320) | 56-131 | 0.37 (0.099) | 2658(3604) | 419(2892) | 3987(5406) | 629(4338) | 66 (49) | 3190(4325) | 629(4338) | 4786(6488) | 944(6507) | 79 (59) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 5 | 127 | 7:8 | 3.3 | 5 (127) | 151-349 (570-1320) | 64-149 | 0.43 (0.113) | 2732(3704) | 494 (3409) | 4098(5556) | 742 (5114) | 78 (58) | 3279(4445) | 742 (5114) | 4918(6668) | 1113(7671) | 93 (69) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 5 | 127 | 7:8 | 3.5 | 5 (127) | 151-349 (570-1320) | 56-131 | 0.37 (0.099) | 3323(4505) | 524(3616) | 4985(6758) | 787(5424) | 83 (62) | 3987(5406) | 787(5424) | 5981(8109) | 1180(8136) | 99 (74) | 5-7/8 - 7-7/8 | 3-1/2 REG | 3-1/2 REG |
| 5-3/8 | 135 | 5:6 | 4.5 | 5.315 (135) | 211-423 (800-1600) | 123-246 | 0.58 (0.154) | 2749(3727) | 674(4649) | 4124(5591) | 1012(6974) | 129 (96) | 3299(4472) | 1012(6974) | 4948(6708) | 1517(10461) | 154 (115) | 6-3/4 - 8-3/4 | 4-1/2 REG | 4-1/2 REG |
| 5-3/8 | 135 | 7:8 | 2.9 | 5.315 (135) | 211-423 (800-1600) | 72-144 | 0.34 (0.09) | 3015(4088) | 435 (2996) | 4523(6132) | 652(4494) | 83 (62) | 3619(4906) | 652(4494) | 5428(7359) | 978(6741) | 99 (74) | 6-3/4 - 8-3/4 | 4-1/2 REG | 4-1/2 REG |
| 5-1/2 | 140 | 5:6 | 5.5 | 5.512 (140) | 317-396 (1200-1500) | 152-191 | 0.48 (0.127) | 4083(5535) | 824(5682) | 6124(8303) | 1236(8523) | 149 (111) | 4899(6642) | 1236(8523) | 7349(9963) | 1854(12785) | 178(133) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 5-1/2 | 140 | 7:8 | 3.8 | 5.512 (140) | 317-396 (1200-1500) | 146-183 | 0.46 (0.122) | 2936(3981) | 569(3925) | 4405(5972) | 854(5888) | 102 (76) | 3524(4777) | 854(5888) | 5286(7166) | 1281(8832) | 123 (92) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 5-1/2 | 140 | 7:8 | 4.6 | 5.512 (140) | 317-396 (1200-1500) | 100-125 | 0.31 (0.083) | 5195(7043) | 689(4752) | 7793(10565) | 1034(7128) | 123 (92) | 6234(8452) | 1034(7128) | 9351(12678) | 1551(10692) | 149 (111) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 5-1/2 | 140 | 7:8 | 5.6 | 5.512 (140) | 317-396 (1200-1500) | 120-150 | 0.38 (0.1) | 5270(7145) | 839(5785) | 7906(10718) | 1259(8678) | 150 (112) | 6324(8574) | 1259(8678) | 9486(12861) | 1888 (13017) | 181(135) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 6-1/2 | 165 | 1:2 | 1.1 | 6.496 (165) | 301-600 (1140-2270) | 295-588 | 0.98 (0.259) | 398 (540) | 165(1136) | 597(810) | 247 (1704) | 44 (33) | 478(648) | 247 (1704) | 717(972) | 371 (2556) | 54 (40) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-1/2 | 165 | 5:6 | 5.1 | 6.496 (165) | 301-600 (1140-2270) | 132-263 | 0.44 (0.116) | 4124(5591) | 764(5268) | 6186(8387) | 1146(7902) | 207(154) | 4949(6709) | 1146(7902) | 7423(10064) | 1719(11853) | 248 (185) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-1/2 | 165 | 7:8 | 3.2 | 6.496 (165) | 301-600 (1140-2270) | 49-98 | 0.16 (0.043) | 6921(9383) | 480(3306) | 10382(14075) | 719(4959) | 129 (96) | 8305(11260) | 719(4959) | 12458(16890) | 1079(7439) | 156(116) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-1/2 | 165 | 7:8 | 4.7 | 6.496 (165) | 301-600 (1140-2270) | 73-145 | 0.24 (0.064) | 6861(9302) | 704(4855) | 10292(13953) | 1056(7283) | 189(141) | 8233(11162) | 1056(7283) | 12350(16743) | 1585(10925) | 227 (169) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-1/2 | 165 | 7:8 | 4.7 | 6.496 (165) | 301-600 (1140-2270) | 79-157 | 0.26 (0.069) | 6362(8625) | 704(4855) | 9543(12938) | 1056(7283) | 190(142) | 7634(10350) | 1056(7283) | 11451(15525) | 1585(10925) | 228 (170) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-1/2 | 165 | 7:8 | 4.7 | 6.772 (172) | 301-600 (1140-2270) | 95-188 | 0.31 (0.083) | 6627(8985) | 1056(7283) | 9941(13478) | 1585(10925) | 237(177) | 7953(10782) | 1585(10925) | 11929(16173) | 2377(16388) | 284 (212) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-1/2 | 165 | 7:8 | 5.6 | 6.496 (165) | 301-600 (1140-2270) | 88-175 | 0.29 (0.077) | 6812(9236) | 839(5785) | 10219(13854) | 1259(8678) | 227 (169) | 8175(11083) | 1259(8678) | 12263(16625) | 1888 (13017) | 272 (203) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-1/2 | 165 | 7:8 | 5.6 | 6.496 (165) | 301-600 (1140-2270) | 95-188 | 0.31 (0.083) | 6317(8564) | 839(5785) | 9475(12846) | 1259(8678) | 227 (169) | 7580(10277) | 1259(8678) | 11371(15416) | 1888 (13017) | 271 (202) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 2:3 | 9.4 | 6.772 (172) | 301-600 (1140-2270) | 380-756 | 1.26 (0.333) | 2651(3594) | 1408(9710) | 3976(5391) | 2113(14565) | 382 (285) | 3181(4313) | 2113(14565) | 4772(6470) | 3169(21848) | 457(341) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 2:3 | 11.7 | 6.772 (172) | 301-600 (1140-2270) | 589-1174 | 1.96 (0.517) | 2127(2884) | 1753(12086) | 3191(4326) | 2629(18129) | 476 (355) | 2553(3461) | 2629(18129) | 3830(5192) | 3944(27194) | 571(426) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 4:5 | 6.7 | 6.772 (172) | 301-600 (1140-2270) | 138-275 | 0.46 (0.121) | 5208(7061) | 1004(6921) | 7813(10592) | 1506(10382) | 272 (203) | 6250(8473) | 1506(10382) | 9375(12710) | 2259(15573) | 327 (244) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 4:5 | 10.3 | 6.772 (172) | 301-600 (1140-2270) | 182-363 | 0.61 (0.16) | 6039(8188) | 1543(10640) | 9059(12282) | 2315(15960) | 417(311) | 7248(9826) | 2315(15960) | 10871(14739) | 3472(23940) | 502 (374) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 5:6 | 5.6 | 6.772 (172) | 301-600 (1140-2270) | 104-207 | 0.34 (0.091) | 7204(9767) | 1259(8677) | 10807(14651) | 1888 (13016) | 284 (212) | 8645(11720) | 1888 (13016) | 12967(17580) | 2832 (19524) | 341 (254) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 5:6 | 6.2 | 6.772 (172) | 301-600 (1140-2270) | 112-222 | 0.37 (0.098) | 5964(8086) | 929(6405) | 8946(12129) | 1394(9608) | 252 (188) | 7157(9703) | 1394(9608) | 10736(14555) | 2090(14412) | 303 (226) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 5:6 | 6.2 | 6.772 (172) | 301-600 (1140-2270) | 114-227 | 0.38 (0.1) | 7285(9877) | 1393(9607) | 10928(14816) | 2090(14411) | 315 (235) | 8742(11852) | 2090(14411) | 13113(17778) | 3135(21617) | 378 (282) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 5:6 | 6.4 | 6.772 (172) | 301-600 (1140-2270) | 121-241 | 0.4 (0.106) | 5649(7659) | 959(6611) | 8474(11489) | 1438(9917) | 259 (193) | 6779(9191) | 1438(9917) | 10169(13787) | 2158(14876) | 311 (232) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 5:6 | 7.1 | 6.772 (172) | 301-600 (1140-2270) | 112-222 | 0.37 (0.098) | 6830(9260) | 1064(7334) | 10245(13890) | 1596(11001) | 288 (215) | 8196(11112) | 1596(11001) | 12294(16668) | 2393(16502) | 346 (258) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 3.0 | 6.772 (172) | 301-600 (1140-2270) | 83-166 | 0.28 (0.073) | 4833(6553) | 674(4649) | 7251(9830) | 1012(6974) | 153(114) | 5800(7864) | 1012(6974) | 8701(11796) | 1517(10461) | 184 (137) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 3.2 | 6.772 (172) | 301-600 (1140-2270) | 42-84 | 0.14 (0.037) | 8082(10957) | 480(3306) | 12123(16436) | 719(4959) | 129 (96) | 9698(13148) | 719(4959) | 14547(19722) | 1079(7439) | 156(116) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 4.0 | 6.772 (172) | 301-600 (1140-2270) | 79-157 | 0.26 (0.069) | 5415(7341) | 599(4132) | 8122(11012) | 899(6198) | 162 (121) | 6498(8809) | 899(6198) | 9747(13214) | 1348(9297) | 194(145) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 4.0 | 6.772 (172) | 301-600 (1140-2270) | 65-129 | 0.22 (0.057) | 8205(11124) | 899(6198) | 12308(16686) | 1348(9297) | 201 (150) | 9846(13349) | 1348(9297) | 14770 (20024) | 2023(13946) | 241 (180) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 4.0 | 6.772 (172) | 301-600 (1140-2270) | 57-114 | 0.19 (0.05) | 9472(12841) | 899(6198) | 14208 (19262) | 1348(9297) | 205(153) | 11366(15409) | 1348(9297) | 17049(23114) | 2023(13946) | 247(184) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 4.3 | 6.772 (172) | 301-600 (1140-2270) | 73-145 | 0.24 (0.064) | 6278(8511) | 644 (4442) | 9417(12767) | 966(6663) | 173 (129) | 7533(10213) | 966(6663) | 11300(15320) | 1450 (9995) | 208 (155) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 4.3 | 6.772 (172) | 301-600 (1140-2270) | 79-157 | 0.26 (0.069) | 7276(9864) | 966(6663) | 10914(14796) | 1450 (9995) | 217(162) | 8731(11837) | 1450 (9995) | 13097(17756) | 2175(14993) | 261(195) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 4.7 | 6.772 (172) | 301-600 (1140-2270) | 73-145 | 0.24 (0.064) | 6861(9302) | 704(4855) | 10292(13953) | 1056(7283) | 189(141) | 8233(11162) | 1056(7283) | 12350(16743) | 1585(10925) | 227 (169) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 4.7 | 6.772 (172) | 301-600 (1140-2270) | 95-188 | 0.31 (0.083) | 5302(7188) | 704(4855) | 7953(10782) | 1056(7283) | 190(142) | 6363(8626) | 1056(7283) | 9544(12939) | 1585(10925) | 228 (170) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 4.7 | 6.772 (172) | 301-600 (1140-2270) | 95-188 | 0.31 (0.083) | 6627(8985) | 1056(7283) | 9941(13478) | 1585(10925) | 237(177) | 7953(10782) | 1585(10925) | 11929(16173) | 2377(16388) | 284 (212) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 4.9 | 6.772 (172) | 301-600 (1140-2270) | 65-129 | 0.22 (0.057) | 8044(10905) | 734(5062) | 12066(16358) | 1101(7593) | 197(147) | 9652(13086) | 1101(7593) | 14478 (19629) | 1652(11390) | 237(177) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 5.0 | 6.772 (172) | 301-600 (1140-2270) | 83-166 | 0.28 (0.073) | 6405(8684) | 749(5165) | 9608(13026) | 1124(7748) | 202(151) | 7687(10421) | 1124(7748) | 11530(15632) | 1686(11622) | 243 (181) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 5.0 | 6.772 (172) | 301-600 (1140-2270) | 83-166 | 0.28 (0.073) | 8007(10855) | 1124(7748) | 12010(16283) | 1686(11622) | 253(189) | 9608(13026) | 1686(11622) | 14412 (19539) | 2528(17433) | 303 (226) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 5.0 | 6.772 (172) | 301-600 (1140-2270) | 74-148 | 0.25 (0.065) | 9021(12230) | 1124(7748) | 13531(18345) | 1686(11622) | 255 (190) | 10825(14676) | 1686(11622) | 16238(22014) | 2528(17433) | 304 (227) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 5.1 | 6.772 (172) | 301-600 (1140-2270) | 88-175 | 0.29 (0.077) | 6204(8411) | 764(5268) | 9306(12617) | 1146(7902) | 207(154) | 7445(10093) | 1146(7902) | 11167(15140) | 1719(11853) | 248 (185) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 5.1 | 6.772 (172) | 301-600 (1140-2270) | 95-188 | 0.31 (0.083) | 7191(9749) | 1146(7902) | 10787(14624) | 1719(11853) | 257(192) | 8629(11699) | 1719(11853) | 12944(17549) | 2579(17780) | 308 (230) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 5.1 | 6.772 (172) | 301-600 (1140-2270) | 71-141 | 0.23 (0.062) | 7717(10462) | 764(5268) | 11575(15693) | 1146(7902) | 207(154) | 9260(12554) | 1146(7902) | 13890(18831) | 1719(11853) | 248 (185) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 5.5 | 6.772 (172) | 301-600 (1140-2270) | 83-166 | 0.28 (0.073) | 7046(9552) | 824(5682) | 10568(14328) | 1236(8523) | 223(166) | 8454(11462) | 1236(8523) | 12682(17193) | 1854(12785) | 267 (199) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 5.5 | 6.772 (172) | 301-600 (1140-2270) | 83-166 | 0.28 (0.073) | 7046(9552) | 824(5682) | 10568(14328) | 1236(8523) | 223(166) | 8454(11462) | 1236(8523) | 12682(17193) | 1854(12785) | 267 (199) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 5.6 | 6.772 (172) | 301-600 (1140-2270) | 88-175 | 0.29 (0.077) | 6812(9236) | 839(5785) | 10219(13854) | 1259(8678) | 227 (169) | 8175(11083) | 1259(8678) | 12263(16625) | 1888 (13017) | 272 (203) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 6.3 | 6.772 (172) | 301-600 (1140-2270) | 83-166 | 0.28 (0.073) | 8071(10942) | 944(6508) | 12106(16413) | 1416(9762) | 255 (190) | 9685(13130) | 1416(9762) | 14527 (19695) | 2124(14643) | 306 (228) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 7:8 | 6.4 | 6.772 (172) | 301-600 (1140-2270) | 88-175 | 0.29 (0.077) | 7786(10556) | 959(6611) | 11679(15834) | 1438(9917) | 259 (193) | 9343(12667) | 1438(9917) | 14015 (19001) | 2158(14876) | 311 (232) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 6-3/4 | 172 | 9:10 | 8.3 | 6.772 (172) | 301-600 (1140-2270) | 79-157 | 0.26 (0.069) | 11296(15315) | 1244(8574) | 16945(22973) | 1865 (12861) | 338 (252) | 13556(18378) | 1865 (12861) | 20333(27567) | 2798(19292) | 405 (302) | 8-3/8 - 9-7/8 | 4-1/2 REG | 4-1/2 REG |
| 7-1/4 | 185 | 5:6 | 5.6 | 7.283 (185) | 301-600 (1140-2270) | 90-179 | 0.3 (0.079) | 6697(9079) | 839(5785) | 10045(13619) | 1259(8678) | 228 (170) | 8036(10895) | 1259(8678) | 12055(16343) | 1888 (13017) | 274 (204) | 8-3/4 - 9-7/8 | 5-1/2 REG | 6-5/8 REG |
| 7-1/4 | 185 | 6:7 | 3.8 | 7.283 (185) | 301-600 (1140-2270) | 79-157 | 0.26 (0.069) | 5182(7026) | 569(3925) | 7774(10539) | 854(5888) | 156(116) | 6219(8431) | 854(5888) | 9328(12647) | 1281(8832) | 186(139) | 8-3/4 - 9-7/8 | 5-1/2 REG | 6-5/8 REG |
| 7-1/4 | 185 | 6:7 | 4.8 | 7.283 (185) | 301-600 (1140-2270) | 60-120 | 0.2 (0.053) | 8502(11526) | 719(4958) | 12752(17289) | 1079(7437) | 194(145) | 10202(13831) | 1079(7437) | 15303(20747) | 1618(11156) | 233(174) | 8-3/4 - 9-7/8 | 5-1/2 REG | 6-5/8 REG |
| 7-1/4 | 185 | 7:8 | 3.2 | 7.283 (185) | 301-600 (1140-2270) | 42-84 | 0.14 (0.037) | 8082(10957) | 480(3306) | 12123(16436) | 719(4959) | 129 (96) | 9698(13148) | 719(4959) | 14547(19722) | 1079(7439) | 156(116) | 8-3/4 - 9-7/8 | 5-1/2 REG | 6-5/8 REG |
| 7-1/4 | 185 | 7:8 | 5.6 | 7.283 (185) | 301-600 (1140-2270) | 74-148 | 0.25 (0.065) | 8142(11038) | 839(5785) | 12212(16557) | 1259(8678) | 229 (171) | 9770(13246) | 1259(8678) | 14655 (19869) | 1888 (13017) | 275 (205) | 8-3/4 - 9-7/8 | 5-1/2 REG | 6-5/8 REG |
| 7-1/4 | 185 | 7:8 | 4.9 | 7.283 (185) | 301-600 (1140-2270) | 65-129 | 0.22 (0.057) | 8044(10905) | 734(5062) | 12066(16358) | 1101(7593) | 197(147) | 9652(13086) | 1101(7593) | 14478 (19629) | 1652(11390) | 237(177) | 8-3/4 - 9-7/8 | 5-1/2 REG | 6-5/8 REG |
| 7-3/4 | 197 | 2:3 | 6.9 | 7.756 (197) | 399-901 (1510-3410) | 432-975 | 1.08 (0.286) | 2267(3073) | 1034(7128) | 3400(4610) | 1551(10692) | 421 (314) | 2720(3688) | 1551(10692) | 4080(5532) | 2326(16038) | 506(377) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 7-3/4 | 197 | 5:6 | 5.6 | 7.756 (197) | 399-901 (1510-3410) | 107-242 | 0.27 (0.071) | 7442 (10089) | 839(5785) | 11163(15134) | 1259(8678) | 343 (256) | 8930(12107) | 1259(8678) | 13396(18161) | 1888 (13017) | 412 (307) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 7-3/4 | 197 | 6:7 | 4.8 | 7.756 (197) | 399-901 (1510-3410) | 72-164 | 0.18 (0.048) | 9359(12689) | 719(4958) | 14039(19034) | 1079(7437) | 292 (218) | 11231(15227) | 1079(7437) | 16848(22841) | 1618(11156) | 351 (262) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 7-3/4 | 197 | 6:7 | 4.8 | 7.756 (197) | 634-793 (2400-3000) | 115-144 | 0.18 (0.048) | 11699(15861) | 1079(7438) | 17549(23792) | 1618(11157) | 320 (239) | 14039(19033) | 1618(11157) | 21058(28550) | 2427(16736) | 385 (287) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 8 | 203 | 4:5 | 5.6 | 7.992 (203) | 399-901 (1510-3410) | 106-239 | 0.26 (0.07) | 7470(10127) | 839(5785) | 11205(15191) | 1259(8678) | 339(253) | 8963(12152) | 1259(8678) | 13445(18228) | 1888 (13017) | 408 (304) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 8 | 203 | 4:5 | 6.1 | 7.992 (203) | 399-901 (1510-3410) | 97-218 | 0.24 (0.064) | 11181(15158) | 1371(9452) | 16771(22737) | 2056(14178) | 464 (346) | 13417(18190) | 2056(14178) | 20125(27285) | 3085(21267) | 557(415) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 8 | 203 | 5:6 | 3.0 | 7.992 (203) | 399-901 (1510-3410) | 92-208 | 0.23 (0.061) | 4592(6225) | 449(3099) | 6888(9338) | 674(4649) | 182 (136) | 5510(7470) | 674(4649) | 8265(11205) | 1012(6974) | 219(163) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 8 | 203 | 5:6 | 5.6 | 7.992 (203) | 399-901 (1510-3410) | 92-208 | 0.23 (0.061) | 8570(11619) | 839(5785) | 12856(17429) | 1259(8678) | 339(253) | 10284(13943) | 1259(8678) | 15427(20915) | 1888 (13017) | 408 (304) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 8 | 203 | 6:7 | 4.8 | 7.992 (203) | 399-901 (1510-3410) | 69-157 | 0.17 (0.046) | 9740(13205) | 719(4958) | 14610 (19808) | 1079(7437) | 291(217) | 11688(15846) | 1079(7437) | 17532(23769) | 1618(11156) | 350 (261) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 8 | 203 | 7:8 | 4.1 | 7.992 (203) | 399-901 (1510-3410) | 62-140 | 0.16 (0.041) | 9383(12721) | 614(4235) | 14075(19082) | 921(6353) | 251(187) | 11259(15265) | 921(6353) | 16890(22898) | 1382(9530) | 300 (224) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 8 | 203 | 7:8 | 3.8 | 7.992 (203) | 399-901 (1510-3410) | 62-140 | 0.16 (0.041) | 10871(14738) | 854(5888) | 16306(22107) | 1281(8832) | 290(216) | 13045(17686) | 1281(8832) | 19568(26529) | 1921(13248) | 347 (259) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 8 | 203 | 7:8 | 4.2 | 7.992 (203) | 399-901 (1510-3410) | 56-126 | 0.14 (0.037) | 10714(14526) | 629(4339) | 16072(21789) | 944(6509) | 257(192) | 12857(17431) | 944(6509) | 19286(26147) | 1416(9764) | 308 (230) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 8 | 203 | 7:8 | 4.2 | 7.992 (203) | 399-901 (1510-3410) | 56-126 | 0.14 (0.037) | 13393(18158) | 944(6508) | 20090(27237) | 1416(9762) | 322 (240) | 16072(21790) | 1416(9762) | 24108(32685) | 2124(14643) | 386 (288) | 9-7/8 - 12-1/4 | 6-5/8 REG | 6-5/8 REG |
| 8-1/2 | 216 | 5:6 | 5.6 | 8.504 (216) | 528-1057 (2000-4000) | 104-208 | 0.2 (0.052) | 10154(13766) | 839(5785) | 15231(20649) | 1259(8678) | 402 (300) | 12184(16519) | 1259(8678) | 18277(24779) | 1888 (13017) | 483 (360) | 12-1/4 - 15-1/2 | 6-5/8 REG | 6-5/8 REG |
| 8-1/2 | 216 | 6:7 | 4.8 | 8.504 (216) | 449-1001 (1700-3790) | 63-140 | 0.14 (0.037) | 12229(16580) | 719(4958) | 18344(24870) | 1079(7437) | 326 (243) | 14675 (19896) | 1079(7437) | 22013(29844) | 1618(11156) | 392 (292) | 12-1/4 - 15-1/2 | 6-5/8 REG | 6-5/8 REG |
| 8-1/2 | 216 | 6:7 | 4.8 | 8.504 (216) | 399-901 (1510-3410) | 60-136 | 0.15 (0.04) | 11383(15433) | 719(4958) | 17075(23150) | 1079(7437) | 295 (220) | 13660(18520) | 1079(7437) | 20491(27780) | 1618(11156) | 354 (264) | 12-1/4 - 15-1/2 | 6-5/8 REG | 6-5/8 REG |
| 8-1/2 | 216 | 7:8 | 4.2 | 8.504 (216) | 399-901 (1510-3410) | 51-116 | 0.13 (0.034) | 11709(15874) | 629(4339) | 17563(23811) | 944(6509) | 259 (193) | 14051 (19049) | 944(6509) | 21076(28574) | 1416(9764) | 310 (231) | 12-1/4 - 15-1/2 | 6-5/8 REG | 6-5/8 REG |
| 9 | 228 | 5:6 | 4.2 | 8.976 (228) | 600-1199(2270-4540) | 77-154 | 0.13 (0.034) | 11731(15904) | 629(4339) | 17596(23856) | 944(6509) | 343 (256) | 14077(19085) | 944(6509) | 21116(28628) | 1416(9764) | 413(308) | 12-1/4 - 15-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9 | 228 | 5:6 | 5.6 | 8.976 (228) | 600-1199(2270-4540) | 107-213 | 0.18 (0.047) | 11265(15273) | 839(5785) | 16898(22910) | 1259(8678) | 457(341) | 13519(18328) | 1259(8678) | 20278(27492) | 1888 (13017) | 548 (409) | 12-1/4 - 15-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9 | 228 | 6:7 | 4.8 | 8.976 (228) | 600-1199(2270-4540) | 79-159 | 0.13 (0.035) | 12870(17449) | 719(4958) | 19306(26174) | 1079(7437) | 390 (291) | 15445(20939) | 1079(7437) | 23167(31409) | 1618(11156) | 468 (349) | 12-1/4 - 15-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9 | 228 | 7:8 | 4.2 | 8.976 (228) | 600-1199(2270-4540) | 61-123 | 0.1 (0.027) | 14782 (20041) | 629(4339) | 22174(30062) | 944(6509) | 346 (258) | 17739(24049) | 944(6509) | 26608(36074) | 1416(9764) | 416 (310) | 12-1/4 - 15-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9 | 228 | 7:8 | 4.2 | 8.976 (228) | 600-1199(2270-4540) | 70-141 | 0.12 (0.031) | 12922(17519) | 629(4339) | 19383(26279) | 944(6509) | 347 (259) | 15507(21023) | 944(6509) | 23260(31535) | 1416(9764) | 416 (310) | 12-1/4 - 15-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9-5/8 | 244 | 5:6 | 4.2 | 9.606 (244) | 600-1199(2270-4540) | 77-154 | 0.13 (0.034) | 11731(15904) | 629(4339) | 17596(23856) | 944(6509) | 343 (256) | 14077(19085) | 944(6509) | 21116(28628) | 1416(9764) | 413(308) | 12-1/4 - 17-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9-5/8 | 244 | 6:7 | 4.8 | 9.606 (244) | 600-1199(2270-4540) | 79-159 | 0.13 (0.035) | 12870(17449) | 719(4958) | 19306(26174) | 1079(7437) | 390 (291) | 15445(20939) | 1079(7437) | 23167(31409) | 1618(11156) | 468 (349) | 12-1/4 - 17-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9-5/8 | 244 | 7:8 | 4.2 | 9.606 (244) | 600-1199(2270-4540) | 61-123 | 0.1 (0.027) | 14782 (20041) | 629(4339) | 22174(30062) | 944(6509) | 346 (258) | 17739(24049) | 944(6509) | 26608(36074) | 1416(9764) | 416 (310) | 12-1/4 - 17-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9-5/8 | 244 | 7:8 | 4.3 | 9.606 (244) | 600-1199(2270-4540) | 64-127 | 0.11 (0.028) | 18060(24485) | 966(6663) | 27091(36728) | 1450 (9995) | 437(326) | 21672(29382) | 1450 (9995) | 32508(44073) | 2175(14993) | 524 (391) | 12-1/4 - 17-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9-5/8 | 244 | 7:8 | 4.9 | 9.606 (244) | 600-1199(2270-4540) | 75-150 | 0.12 (0.033) | 13809(18722) | 734(5062) | 20714(28083) | 1101(7593) | 394 (294) | 16571(22466) | 1101(7593) | 24856(33699) | 1652(11390) | 473(353) | 12-1/4 - 17-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9-5/8 | 244 | 7:8 | 6.1 | 9.606 (244) | 600-1199(2270-4540) | 75-150 | 0.12 (0.033) | 17373(23554) | 914(6301) | 26060(35331) | 1371(9452) | 496 (370) | 20848(28265) | 1371(9452) | 31273(42398) | 2056(14178) | 595(444) | 12-1/4 - 17-1/2 | 6-5/8 REG | 7-5/8 REG |
| 9-5/8 | 244 | 9:10 | 7.2 | 9.606 (244) | 600-1199(2270-4540) | 73-145 | 0.12 (0.032) | 21033(28516) | 1079(7438) | 31550(42774) | 1618(11157) | 581(433) | 25240(34219) | 1618(11157) | 37860(51329) | 2427(16736) | 697(520) | 12-1/4 - 17-1/2 | 6-5/8 REG | 7-5/8 REG |
| 11-1/4 | 286 | 4:5 | 5.0 | 11.26 (286) | 600-1199(2270-4540) | 73-145 | 0.12 (0.032) | 14742 (19987) | 749(5165) | 22114(29981) | 1124(7748) | 406(303) | 17691(23984) | 1124(7748) | 26536(35976) | 1686(11622) | 488 (364) | 14-3/4 - 26 | 7-5/8 REG | 7-5/8 REG |
| 11-1/4 | 286 | 7:8 | 5.8 | 11.26 (286) | 600-1199(2270-4540) | 59-118 | 0.1 (0.026) | 20956(28411) | 869(5991) | 31434(42617) | 1303(8987) | 471 (351) | 25147(34093) | 1303(8987) | 37721(51140) | 1955(13481) | 565(421) | 14-3/4 - 26 | 7-5/8 REG | 7-5/8 REG |
| 11-1/4 | 286 | 9:10 | 4.2 | 11.26 (286) | 600-1199(2270-4540) | 39-77 | 0.06 (0.017) | 23203(31457) | 629(4339) | 34804(47186) | 944(6509) | 341 (254) | 27843(37748) | 944(6509) | 41764(56622) | 1416(9764) | 408 (304) | 14-3/4 - 26 | 7-5/8 REG | 7-5/8 REG |
| 11-1/4 | 286 | 13:14 | 4.0 | 11.26 (286) | 600-1199(2270-4540) | 27-54 | 0.05 (0.012) | 31287(42417) | 599(4132) | 46931(63626) | 899(6198) | 322 (240) | 37544(50900) | 899(6198) | 56316(76350) | 1348(9297) | 386 (288) | 14-3/4 - 26 | 7-5/8 REG | 7-5/8 REG |
| 13-3/8 | 340 | 9:10 | 3.4 | 13.386 (340) | 399-901 (1510-3410) | 14-31 | 0.03 (0.009) | 34562(46857) | 509(3512) | 51843(70286) | 764(5268) | 204(152) | 41474(56228) | 764(5268) | 62211(84342) | 1146(7902) | 245 (183) | برای مهندسی بدون سنگر HDD | ||
| 13-3/8 | 340 | 14:15 | 2.9 | 13.386 (340) | 399-901 (1510-3410) | 32-72 | 0.08 (0.021) | 13255(17971) | 435 (2996) | 19883(26957) | 652(4494) | 182 (136) | 15906(21565) | 652(4494) | 23860(32348) | 978(6741) | 219(163) | برای مهندسی بدون سنگر HDD | ||
| 13-3/8 | 340 | 14:15 | 3.5 | 13.386 (340) | 399-901 (1510-3410) | 36-82 | 0.09 (0.024) | 13445(18228) | 524(3616) | 20167(27342) | 787(5424) | 211(157) | 16134(21874) | 787(5424) | 24201(32811) | 1180(8136) | 252 (188) | برای مهندسی بدون سنگر HDD | ||
نمای کارخانه
محصولات توصیه شده
